Dinamic 50S briquetting press
This brand new machine is the smallest of our production with our best usual quality in order to satisfy the requests of the small carpentries.
This product is a hydraulic machine for recycling wooden chips, sawdust, powder and ground scrap, depending on the screen mounted on the grinder, (the best moisture content should be between 8%–17%) coming from joineries, and transforming them into cylindrical briquettes without adding any binder or chemical additives offering considerable advantages. It is designed for being applied also to silos or filtering batteries indoors or outdoors.
Operation
Function is based on a mechanical and hydraulic cycle of high-pressure compacting. A material loading hopper with flush steel wheel stirrer on the bottom that rotates, ensuring the material is loaded into a box by a hydraulic cylinder with pre-compression function before the material reaches the compression chamber. A special hydraulic compression cylinder then compresses the material in the sleeve-extrusion pipe unit.
The advantages of our products
Reduction in volume -90%
Briquettes allow for sensible reduction in volume (depending on the type of material) due to their high pressure compactness rather than the chips. They make work environments considerably more organised and efficient. You can use new spaces to store products and for the production lines.
Reduction in volume -90%
Lower handling and transport costs –80%
The briquettes ensures easy and practical handling, thus reducing internal and external transport costs (use of the forklift truck and, consequently, the time operators dedicate to collecting scraps).
Lower handling and transport costs –80%
Lower recycling costs –70%
The lower transport costs for briquettes have a direct impact on the sales margin at the collection facilities and can represent a valuable source of income.
Lower recycling costs –70%
Lower environmental impact
Briquettes allow for reducing the environmental impact due to the conditions and state of the container or collection facilities, which are often not in a good state.
Lower environmental impact
Lower environmental pollution –70%
The briquettes improve combustion in boilers and fireplaces thanks to an exceptional heat capacity. In turn, this sensibly optimises the yield resulting in less fumes generated and very limited post-combustion residues.
Lower environmental pollution –70%
Higher yield +80%
The briquettes allows for concentrating high energy reserves in a limited volume with a high environmental conservation. During the combustion phase into boilers and fireplaces, the briquettes increase the yield quite sensibly owing to their fundamental characteristic of being compacted at extremely high pressures, as opposed to plain wood chips or shavings. Due to their exceptional heat capacity (wood briquettes have an average yield of 4,000/4,500 kcal, higher than of firewood, which is 2,000/2,300 kcal), they retain heat for longer keeping the temperature inside the boiler's firebox high. Owing to their physiological properties, they are ecofriendly, produce little smoke, have a high density, low percentage of humidity and burn slower and almost entirely with a very limited post-combustion residue. The boilers are cleaner and require less maintenance. Due to the very low porosity of briquettes, the embers produced during combustion are denser than to the ones produced by wood or by non-pressed biomass.
Higher yield +80%
Discover the qualities of our briquetting presses
The qualities
Peerless quality in briquette compacting
Superior construction, strong reliability and uncompromising performances.
Cutting-edge technology, only premium-quality components for extremely high value added and an excellent price-quality ratio.
Maximum flexibility and ease of use.
Design, compact size and ergonomics.
Limited running costs, reduced maintenance interventions and long working life.
Over 130 specific checks during the testing phase on every machine to guarantee excellent quality.
Technical characteristics
Base unit and oil tank
Base unit and oil tank designed and built with thick sheets and tubulars for superior resistance to stress that has been arc welded and powder coated. In addition to its support function, it also acts as the oil tank for hydraulic components. Mounted on the base unit is an IE3 Premium efficiency electric motor, connected to a Casappa hydraulic pump to pressurise the system, an oil-filtration device, an output pipe with air filter and for oil refill, a max. oil temperature thermostat and an oil-level indicator.
Base unit and oil tank
Loading unit
The loading unit has been designed for optimum functionality, with a material loading hopper with flush steel wheel stirrer on the bottom that rotates via a mechanical device managed by the movement of the compressor cylinder, ensuring material is fed into a fixed chamber containing a moving box.
Loading unit
Box unit
The box unit has been projected with excellent build quality and reliability criteria. It is composed of a hydraulic cylinder with lapped housing and Parker seals, whose position is detected by proximity switches to optimize the exchanging time of the electrovalves). It activates the adjustable moving drawer to portion and pre-compress the material, from the loading hopper to a compression chamber.
Box unit
Vice unit
Vice unit composed of a CNC machined single-body vice with high-quality, high-reliability hydraulic cylinder and Parker seals and guide rings which holds and releases an extrusion pipe within which the briquette is held during the compression phase and released once the specific pressure required for briquette is reached. A dedicated pressure gauge allows control of vice operating pressure.
Vice unit
Hydraulic components
Entirely exclusive hydraulic components with high-performance and high-reliability manage the operating phases of the machine's briquetting cycle, optimising hourly yields. An exclusive block (manifold master) acts as a connection node for all hydraulic components. The movement and operating sequence of the cylinders is managed by two Eaton electrovalves.
Hydraulic components
Electric control panel

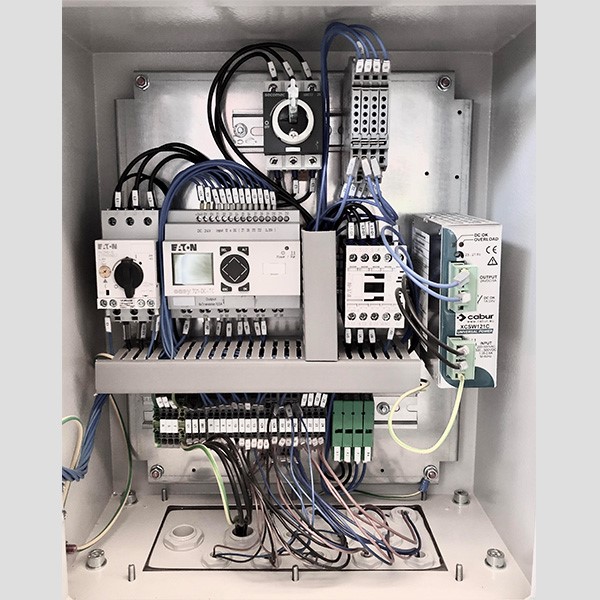

State of the art IP 55 high technological and functional electric control panel equipped with brand new Eaton PLC (Industry 4.0) for the electronic control of the production process able to connect with computer's systems.
Electric control panel
Compression unit
Compression unit composed of a hydraulic compression cylinder with Parker seals and excellent built quality and reliability (with position detected by proximity sensors) equipped with a press that compresses the material within a sleeve compression chamber, thus creating the briquette.
Compression unit
Technical data
| Approximate output | Kg/h | 15÷ 55 |
| Briquette | Ø mm | 50 |
| Box cylinder | Ø mm | 40 |
| Compression cylinder | Ø mm | 100 |
| Maximum compacting pressure on the briquette | bar | 400 |
| Pump motor power | kW | 4 |
| Total installed power | kW | 4 |
| Voltage | Volt/Hz | 400 / 50 |
| Loading hopper dimensions | Ø mm | 1000 |
| Briquetting press dimensions | L (mm) W (mm) H (mm) | 1060 1560 1385 |
| Weight | Kg | 560 |
On-demand accessories
Mechanical level sensorLevel sensor to be applied to the hopper of the briquetting press. It is equipped with a rotor (the material and dimensions vary) which starts and stops the machine automatically.
Inspection door for hoppers Ø 1000 Inspection door to be applied to the hopper of the briquetting press. Recommended when the machine is placed under silos and filtering stations. It is made up of a sturdy hinged steel frame equipped with a visor.
Tapping headTapping head to be applied to the piston rod of the compression cylinder for obtaining briquettes of various lengths.
Briquette breakerBriquette breaker to be applied to the extrusion pipe; it is made up of an electrowelded steel structure complete with adjustable springs and adjustable bracket with four positions for obtaining briquettes of various lengths.
Anti-frost unitAnti-frost unit to be applied to the oil tank; recommended for machines installed outdoors. It is a heating element with an adjustable thermostat.
Supplementary hopper Ø 1000 – H 930 mmSupplementary hopper to be applied to the base hopper of the briquetting press to increase the storage volume of the chips.
